FERRITE SOLUTIONS

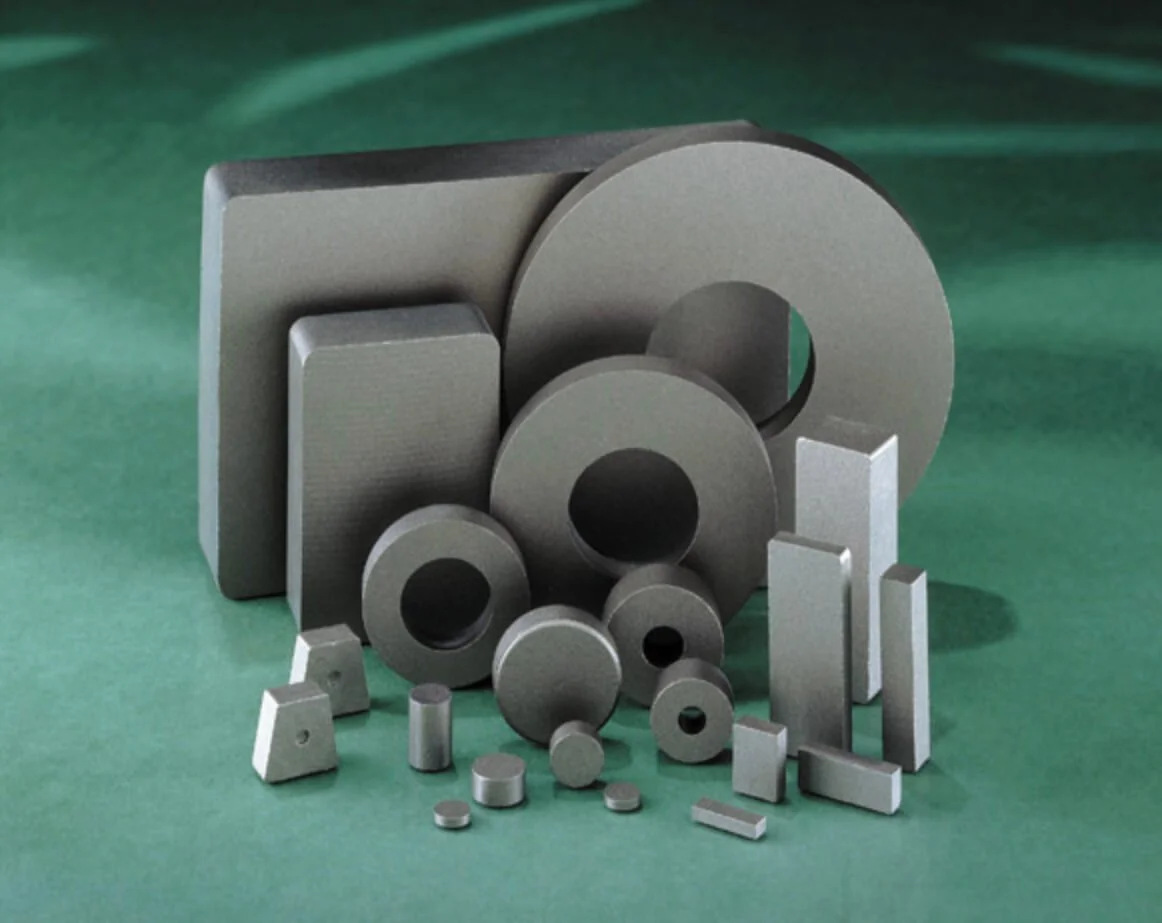

We supply Ferrite in forms like discs, blocks, rings, and tiles, designed for consumer electronics, automotive, and industrial applications. Our global supply chain offers cost-effective and durable options, ensuring reliable magnetic performance for everyday use.
SPECIFICATIONS
Chemical Composition: Ferric oxide (Fe2O3) with Strontium or Barium compounds, forming ceramic magnets with high electrical resistance.
Forms:
Discs: Circular magnets for speakers and motors.
Blocks: Rectangular magnets for magnetic separators.
Rings: Hollow magnets for transformers.
Tiles: Flat magnets for magnetic assemblies.
Weights:
Discs: 0.01-3 kg per magnet.
Blocks: 0.05-6 kg per magnet.
Rings: 0.02-4 kg per magnet.
Tiles: 0.03-5 kg per magnet.
Grades:
Y10T: Standard grade for general applications.
Y25: Medium strength for automotive uses.
Y30: High-performance for industrial motors.
Y35: Maximum strength for heavy-duty applications.
Coatings:
Epoxy: Protective coating for outdoor use.
Paraffin: Basic sealing for indoor applications.
Uncoated: Raw ceramic option for custom finishing.
Polyurethane: Enhanced durability for harsh conditions.
Sizes:
Discs: 5-100mm diameter, 1-50mm thickness.
Blocks: 10-150mm length, 5-120mm width, 2-40mm thickness.
Rings: 15-130mm outer diameter, 5-100mm inner diameter, 2-30mm thickness.
Tiles: 20-200mm length, 10-150mm width, 2-25mm thickness.
Certificates:
RoHS Compliance: Ensures no hazardous substances, safe for electronics and EU markets.
ISO 9001: Guarantees consistent quality management throughout production.
EN 10204 3.1: Confirms compliance with order specs, backed by independent test results.
