AlNiCo SOLUTIONS

We supply AlNiCo in forms like rods, horseshoes, bars, and rings, designed for industrial sensors, audio equipment, and vintage applications. Our global supply chain offers exceptional corrosion resistance and magnetic stability, ensuring long-lasting performance in diverse environments.

SPECIFICATIONS

Chemical Composition: Aluminum-Nickel-Cobalt (AlNiCo) alloy, with Iron, Nickel, and Cobalt in varying ratios, enhanced with Titanium or Niobium for improved properties.

Forms:

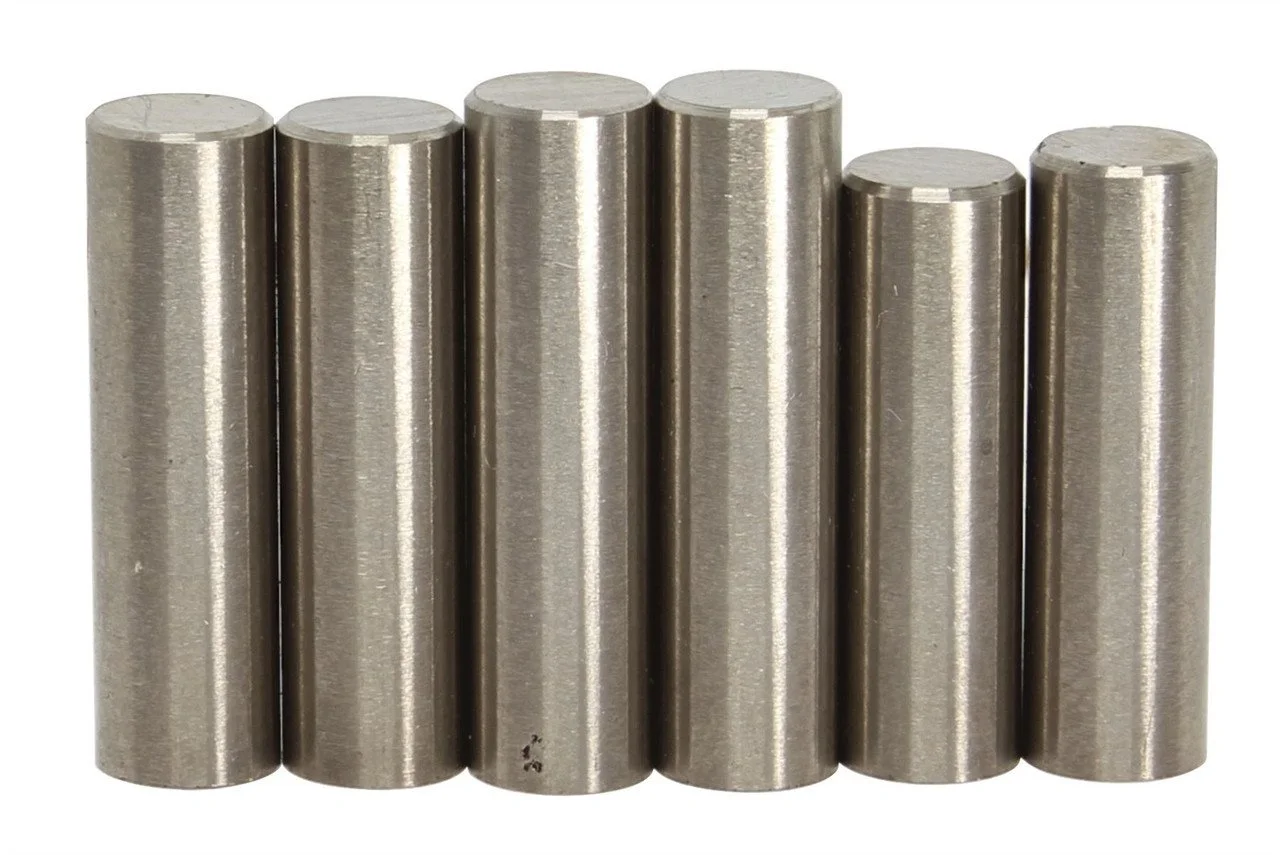

  • Rods: Cylindrical magnets for gauges and meters.

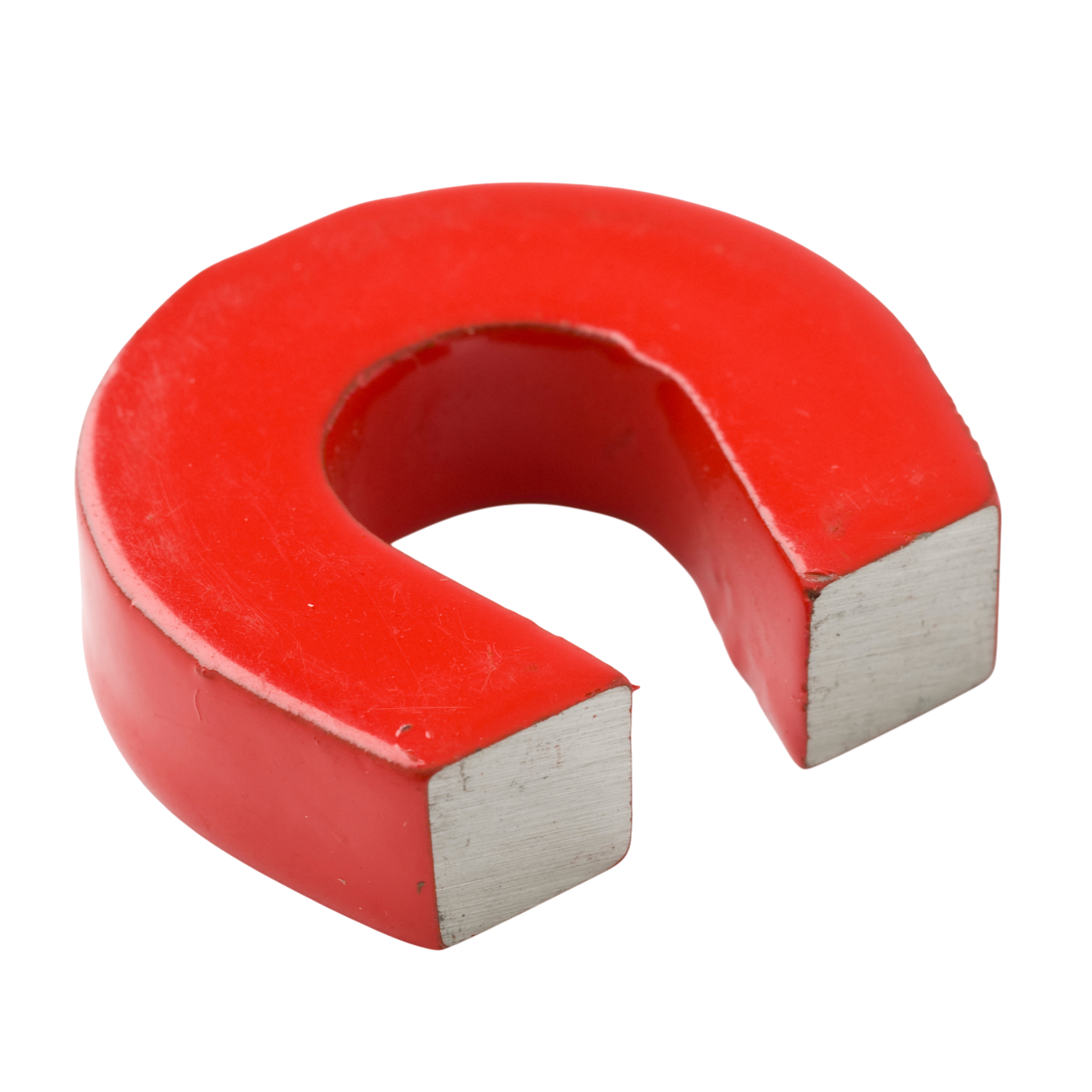

  • Horseshoes: U-shaped magnets for educational and vintage uses.

  • Bars: Rectangular magnets for holding and lifting.

  • Rings: Circular magnets for magnetic assemblies.

Weights:

  • Rods: 0.02-6 kg per magnet.

  • Horseshoes: 0.05-8 kg per magnet.

  • Bars: 0.03-10 kg per magnet.

  • Rings: 0.01-5 kg per magnet.

Grades:

  • Alnico 2: Low coercivity for general-purpose applications.

  • Alnico 5: High remanence for industrial and audio uses.

  • Alnico 8: High-temperature stability up to 550°C.

  • Alnico 9: Maximum energy product for specialized devices.

Coatings:

  • Nickel (Ni): Basic corrosion resistance for indoor use.

  • Chromium (Cr): Enhanced durability for outdoor exposure.

  • Painted: Colored coating for aesthetic or identification purposes.

  • Uncoated: Raw option for custom finishing.

Sizes:

  • Rods: 2-100mm diameter, 10-300mm length.

  • Horseshoes: 20-150mm width, 10-100mm height, 5-50mm thickness.

  • Bars: 5-200mm length, 5-150mm width, 1-40mm thickness.

  • Rings: 10-120mm outer diameter, 5-90mm inner diameter, 1-30mm thickness.

Certificates:

  • RoHS Compliance: Ensures no hazardous substances, safe for electronics and EU markets.

  • ISO 9001: Guarantees consistent quality management throughout production.

  • EN 10204 3.1: Confirms compliance with order specs, backed by independent test results.

Contact us.
